Two Trees TTS-20 Pro 20W Laser Engraver Machine

Regular price $ 486.08
Regular price $ 834.00 Sale price $ 486.08
Shipping calculated at checkout.
CNC TTC-450 Pro

Engraving area: 418*418 mm

Engraving Speed: 30000 mm/min

Compression Spot Technology: Fast Engraving and Higher Engraving Precision

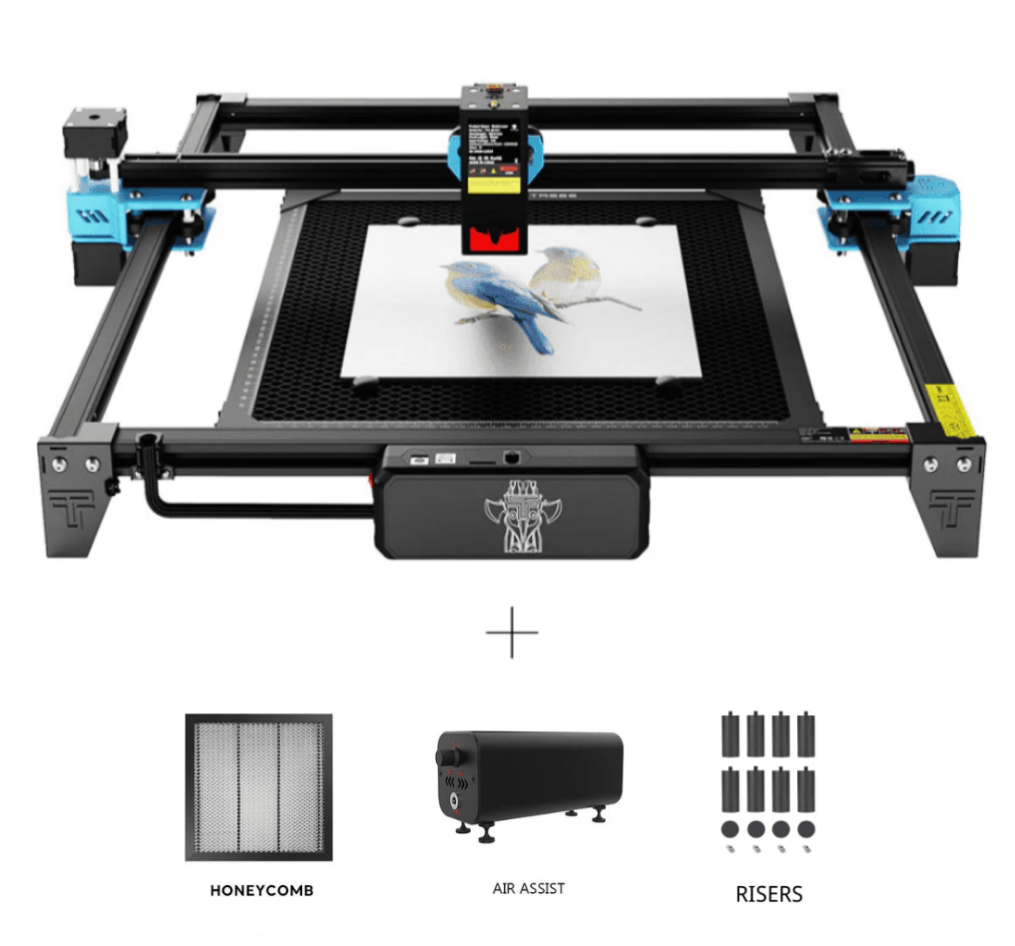

Free Gift: honeycomb panel set & Air Assist pump

Support Offline Engraving, Independent APP Connect

🎁 Flash Sale Price: From $456.08

🎉 $30 OFF, Coupon Code: TT30

Plug Type: EU
Bundle: None

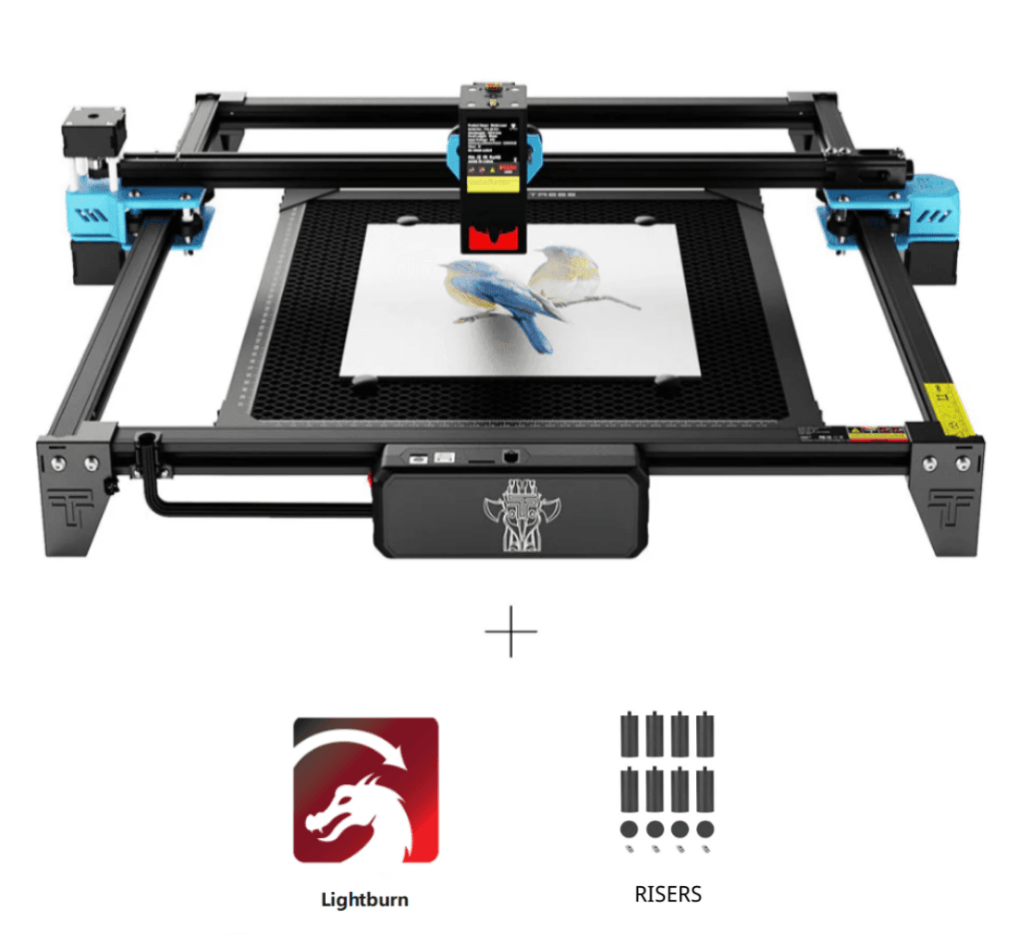

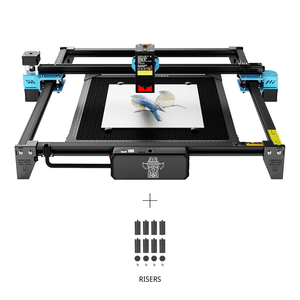

Bundle - Accessories: Risers
Regular price $ 486.08
Regular price $ 834.00 Sale price $ 486.08
Why Choose TTS-20 Pro

Upgrade laser solution

20W laser with compressed spot technology and COS technology solution delivers superior laser cutting performance.

Fast and efficient engraving

Up to 500mm/s engraving speed, lighter in size and more flexible in movement.

Save installation time

98% pre-assembled, easy as plug-and-play, perfect for beginners.

Support Offline Engraving

Connect and control it easily, supports operation via WIFI, TF card and USB connection.

Large Working Area

418mm x 418mm working area to meet more engraving needs.

Free Gift

400mm honeycomb panel and air assist kit for longer machine life and accurate cutting.

Tech Specs

Model No. TTS-20 PRO
Machine Material Aluminum Profile + Sheet Metal + Injection Molded Parts
Laser Power 20W Compressed Spot (Cos Technology)
Spot Compression Technology Yes
Laser Wavelength 450Nm±5Nm
Output Power 20W
Spot Size 0.08*0.08Mm
Height Adjustment Method Lifting Module Adjustment (Manual)
Focusing Method Focus
Machine Size 695*620*125Mm
Engraving Size 418*418Mm
Xy Axis Positioning Accuracy 0.1MM
Engraving Precision 0.1MM
Engraving Speed 30000MM/Min
Engraving Method Usb Connection\App\Wireless Computer Web Terminal
Carving Material Wood, Plastic, Paper, Leather, Sponge Paper
Software Recognition Format Nc, Dxf, Bmp, Jpg, Png, Gcode
Continuous Working Hours ≤6 Hours
Engraving Mode Graphic Engraving, File Engraving, Scan Engraving, Contour Engraving, Pixel Engraving
Control Panel 32-Bit Main Control Board
Language Chinese, English, Italian, French, German
Machine Weight 3.2Kg
Package Size 745*648*170Mm
Package Weight 9.05Kg
Power Supply 24V 4A Dc
Operating System Windows, Mac
Support Software Laser GRBL: Open Source Free Software, Support Win Xp/Win 7/Win 8/Win 10 System
LightBurn: Paid Software, Supports Win Xp/Win 7/Win 8/Win 10 System, Mac System;
Working Environment Temperature 5-40 Degrees Celsius, Humidity 20-60%Rh

Two Trees Accessories

A one-stop solution for all your machine upgrades.


Laser Machines TS2 20W TTS-20 Pro
Laser Power 20W 20W
Structure Semi-enclosed Semi-enclosed
Laser Focus Auto Focus Focus
Engraving Speed 10,000mm/min 30,000mm/min
Engraving Area 410*410mm 418*418mm

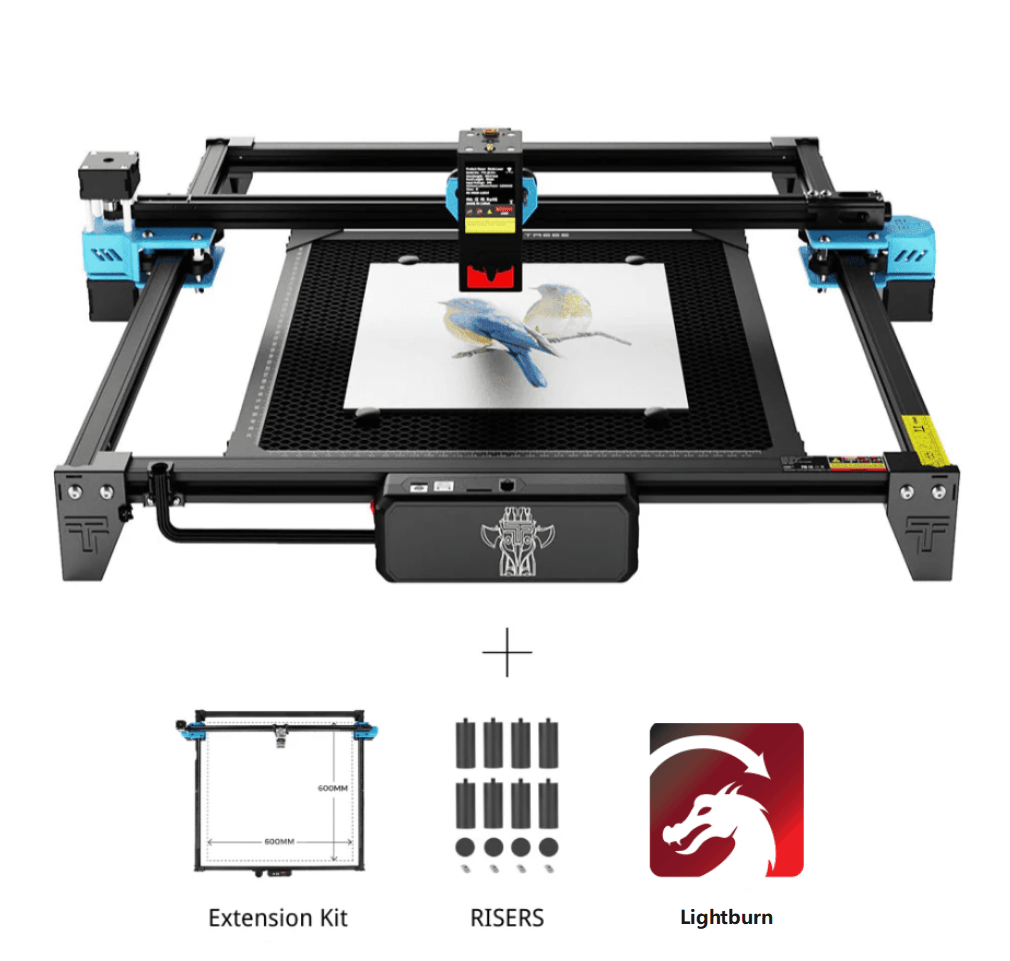

Extended Engraving
450*750mm 600*600mm
Laser Wavelength 450+5nm 445+5nm
Spot Size 0.05*0.1mm 0.05*0.1mm
Spot Mode Square Spot Square Spot
Software LaserGrbl / LightBurn LaserGrbl / LightBurn
Service Life >15,000h >15,000h
Safety Protections 7 7
